Are you a Mechanical Engineering student, Design Engineer, Manufacturing Engineer, CAE Engineer, or Product Development Engineer looking to improve your practical design skills?
Welcome to our brand-new series:
30-Day Mechanical Design Problems & Solutions
Mechanical design is much more than creating CAD models. Every product designed by an engineer faces real-world challenges such as fatigue, vibration, excessive weight, manufacturing defects, tolerance issues, and unexpected failures.
This series explains one practical mechanical design problem every day, why it happens, and how experienced engineers solve it.
Whether you are preparing for interviews, working in industry, or improving your design knowledge, this series will help you think like a professional mechanical design engineer.
Why This Series?
Most engineering textbooks explain theories.
But in industry, engineers solve problems.
This series focuses on practical engineering problems that every design engineer should know.
Each article includes:
✅ Real engineering problem
✅ Root cause analysis
✅ Best engineering solution
✅ Design tips
✅ Manufacturing considerations
✅ Practical engineering lesson
30-Day Mechanical Design Problems & Solutions

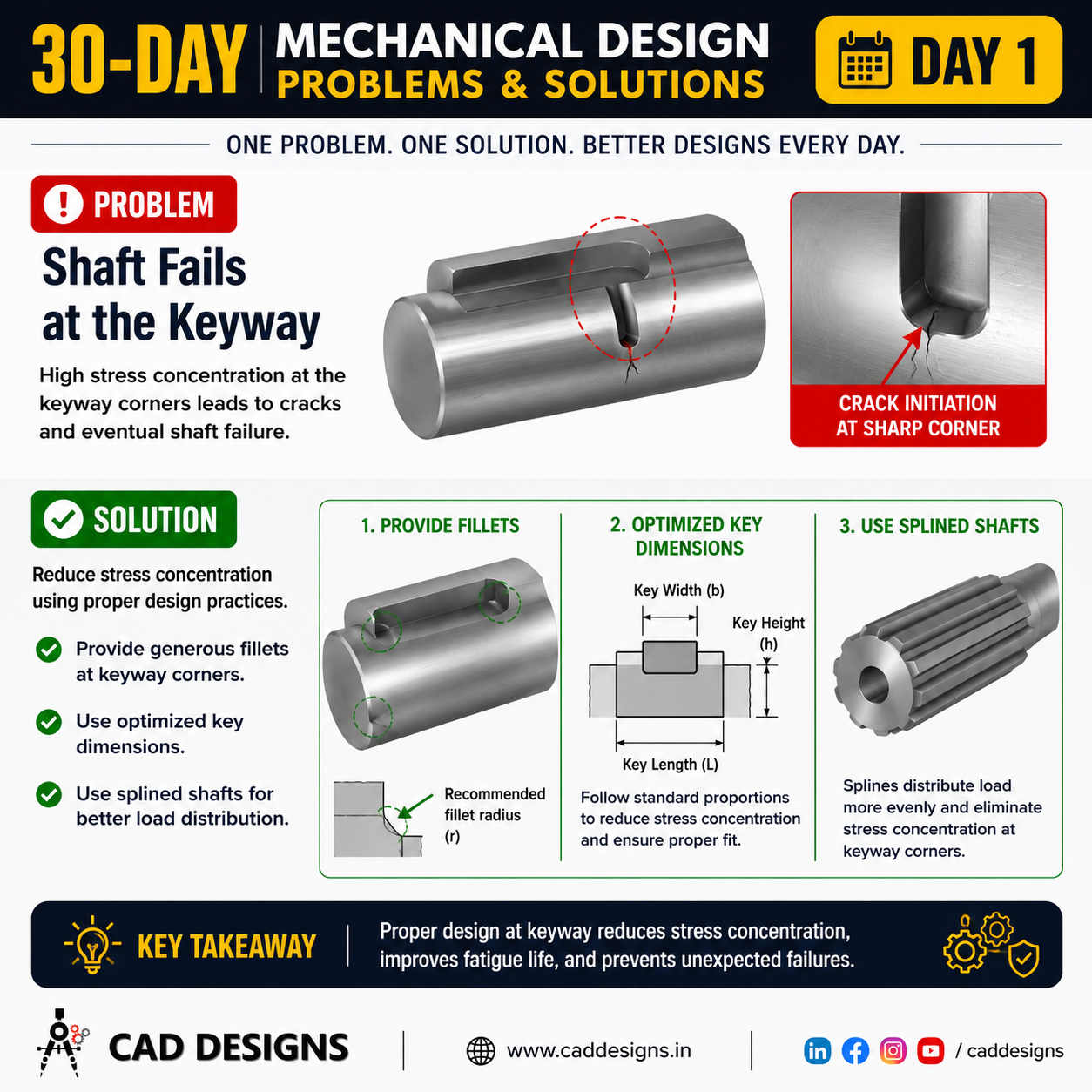

Day 1
Problem: Shaft Fails at the Keyway
Solution: Reduce stress concentration using proper fillets, optimized key dimensions, or splined shafts.
Day 2

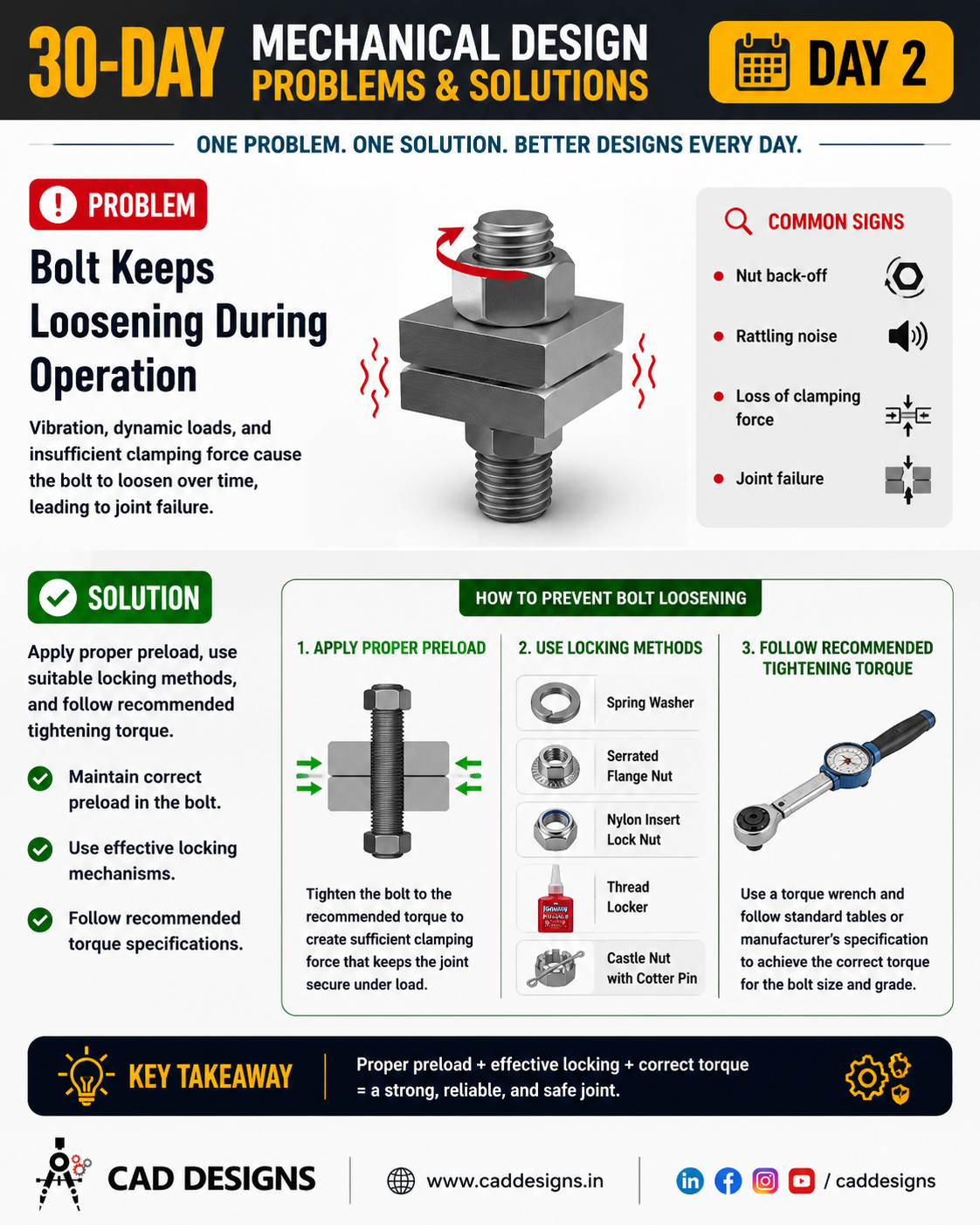

Problem: Bolt Keeps Loosening During Operation
Solution: Apply proper preload, locking methods, and recommended tightening torque.
Day 3

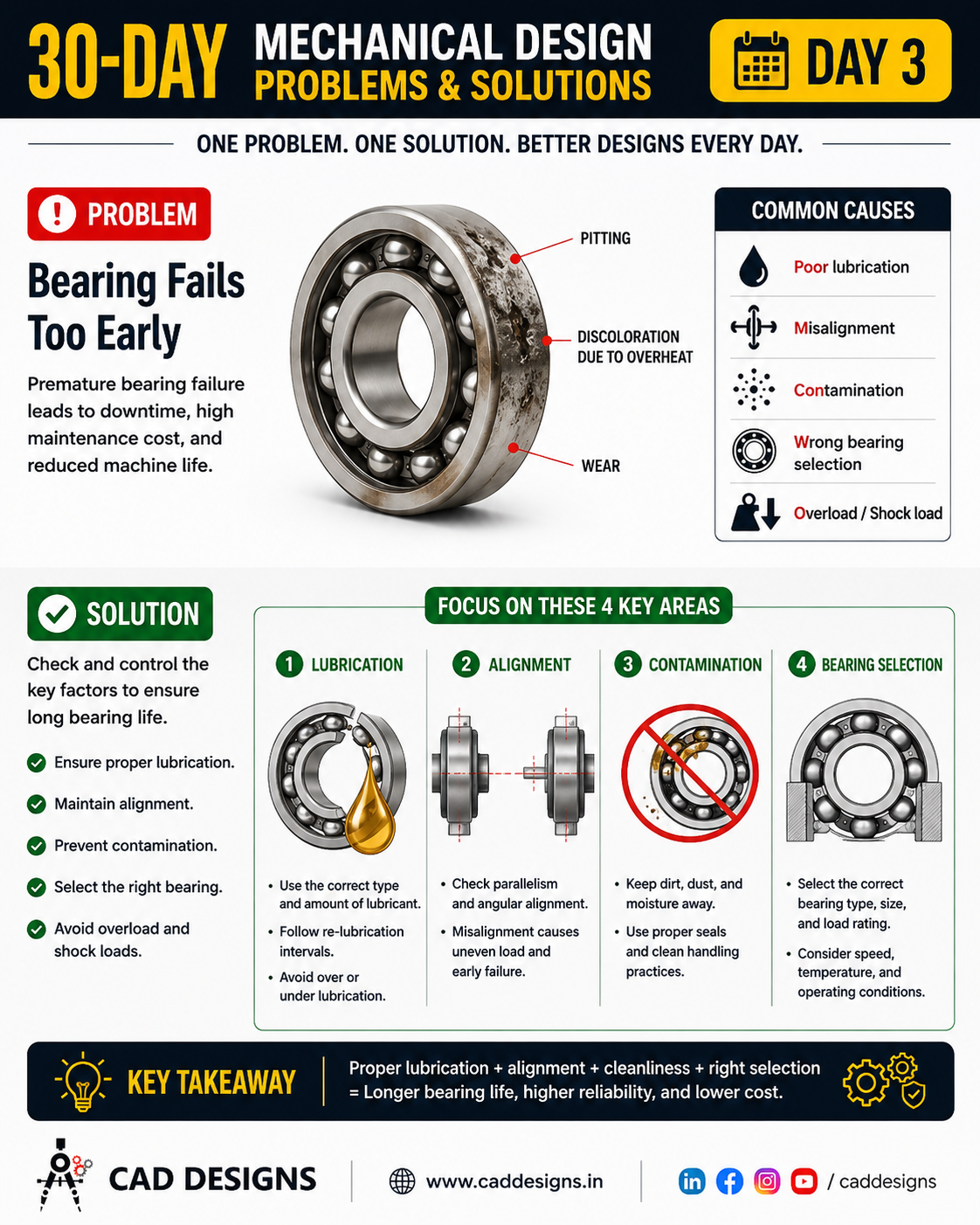

Problem: Bearing Fails Too Early
Solution: Check lubrication, alignment, contamination, and bearing selection.

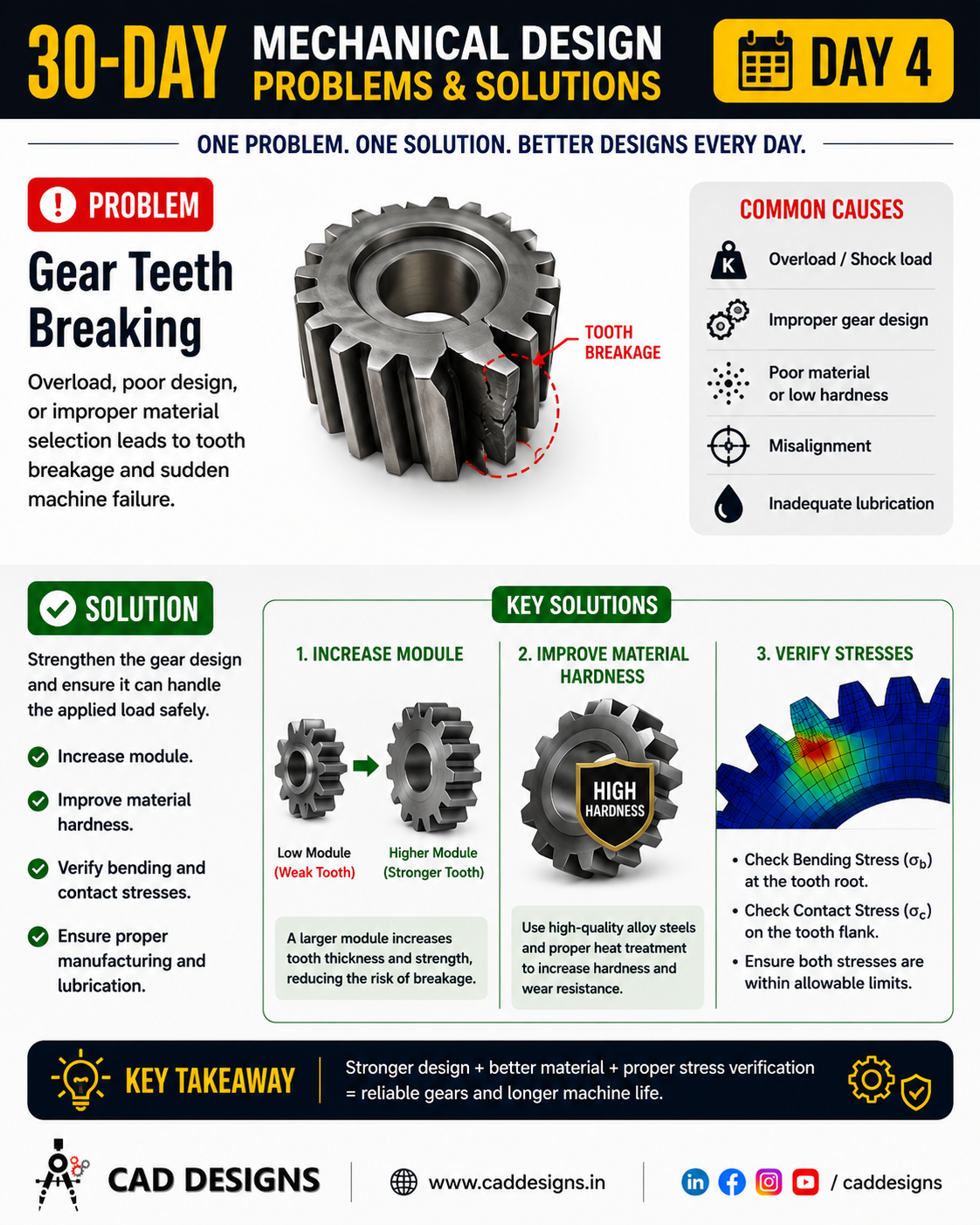

Day 4
Problem: Gear Teeth Breaking
Solution: Increase module, improve material hardness, and verify bending and contact stresses.

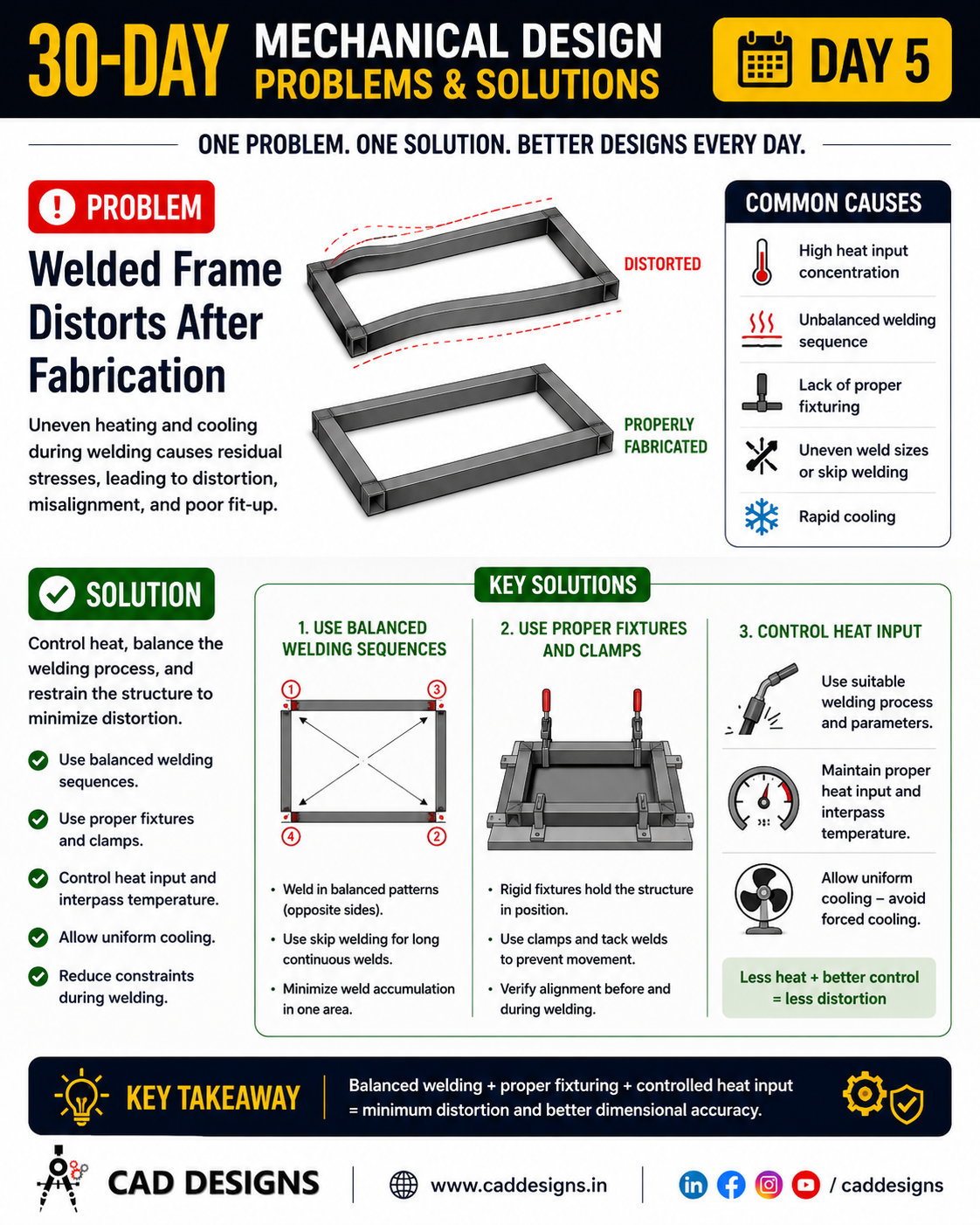

Day 5
Problem: Welded Frame Distorts After Fabrication
Solution: Use balanced welding sequences, proper fixtures, and controlled heat input.

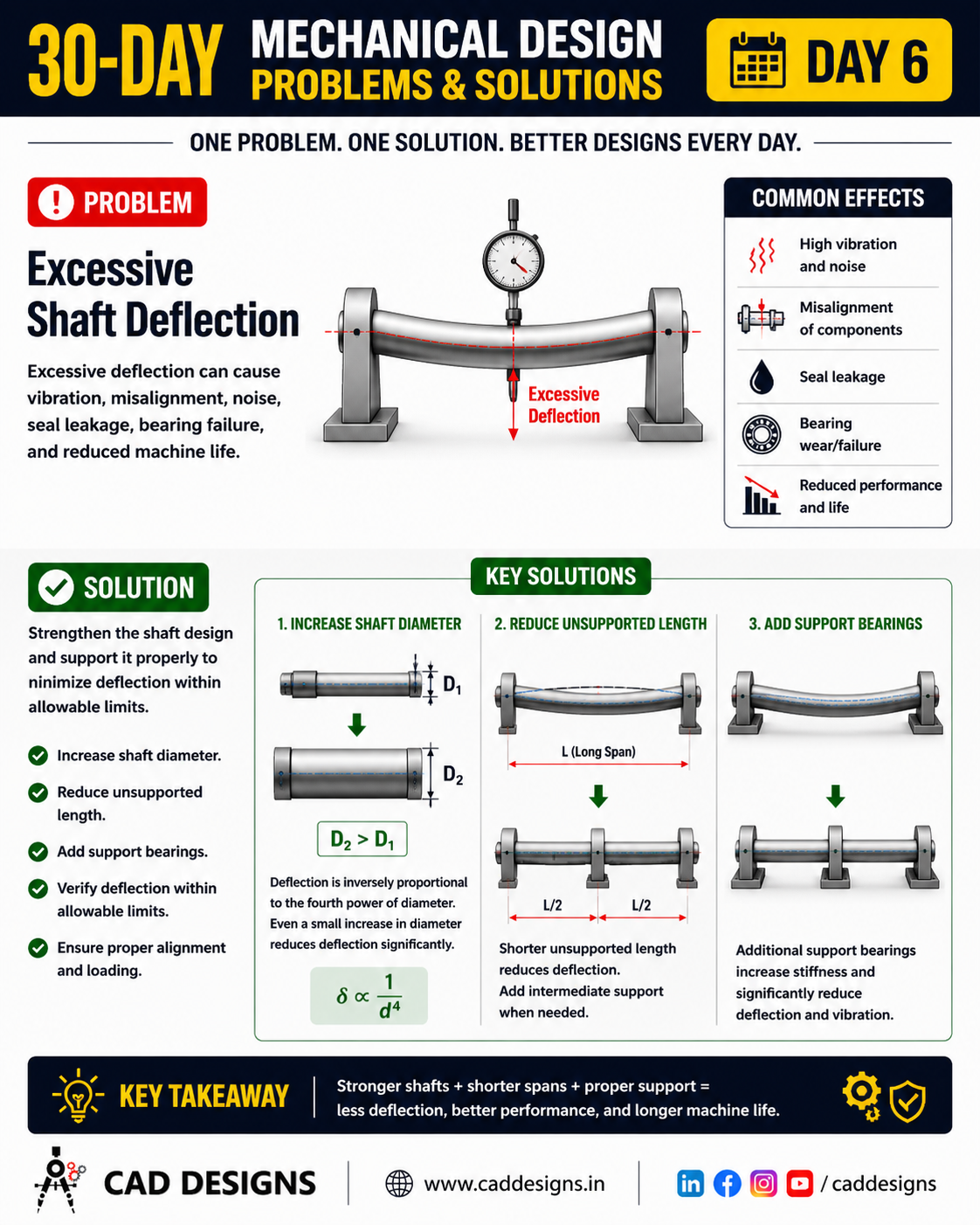

Day 6
Problem: Excessive Shaft Deflection
Solution: Increase shaft diameter, reduce unsupported length, or add support bearings.
Day 7

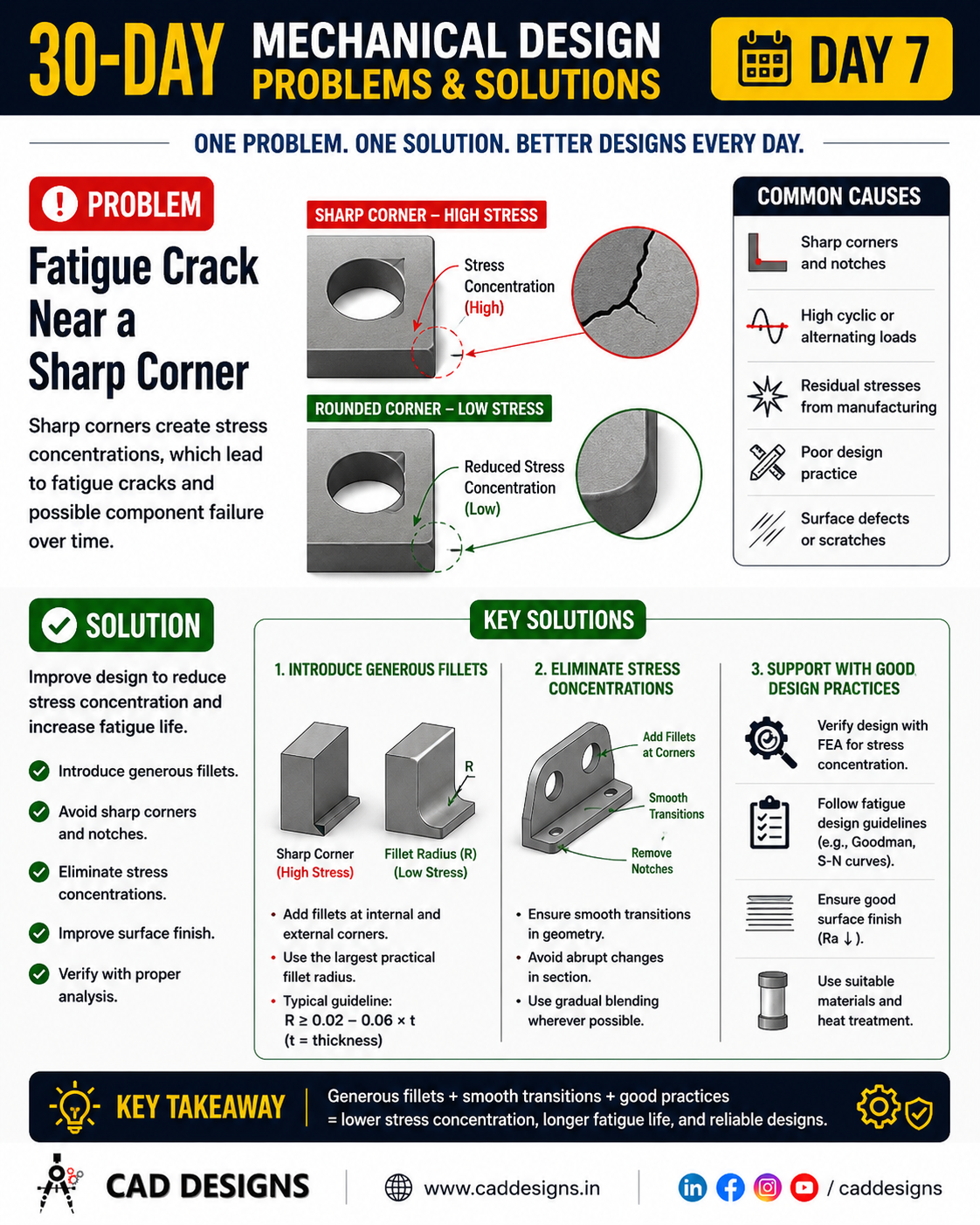

Problem: Fatigue Crack Near a Sharp Corner
Solution: Introduce generous fillets and eliminate stress concentrations.
Day 8

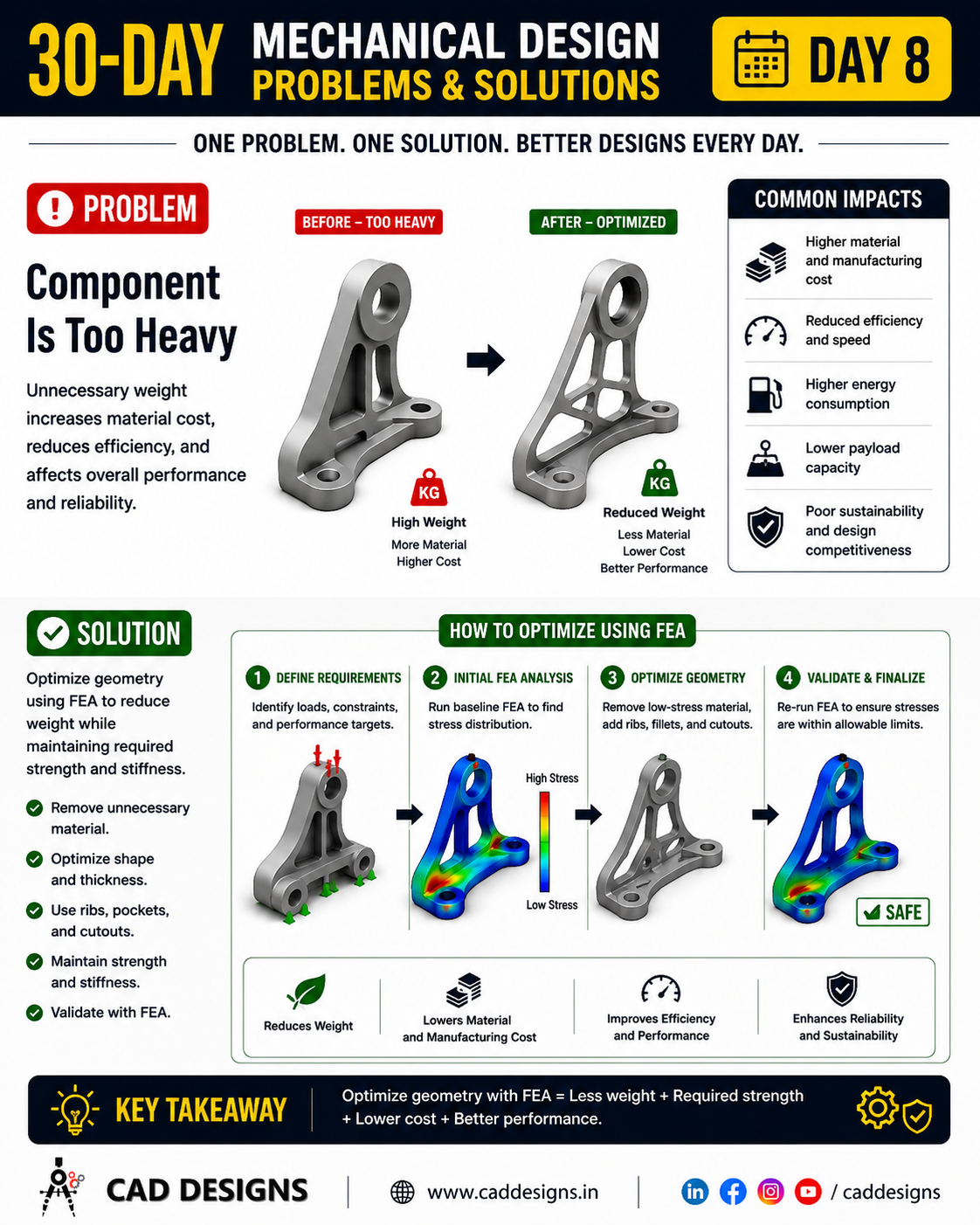

Problem: Component Is Too Heavy
Solution: Optimize geometry using FEA while maintaining required strength.
Day 9

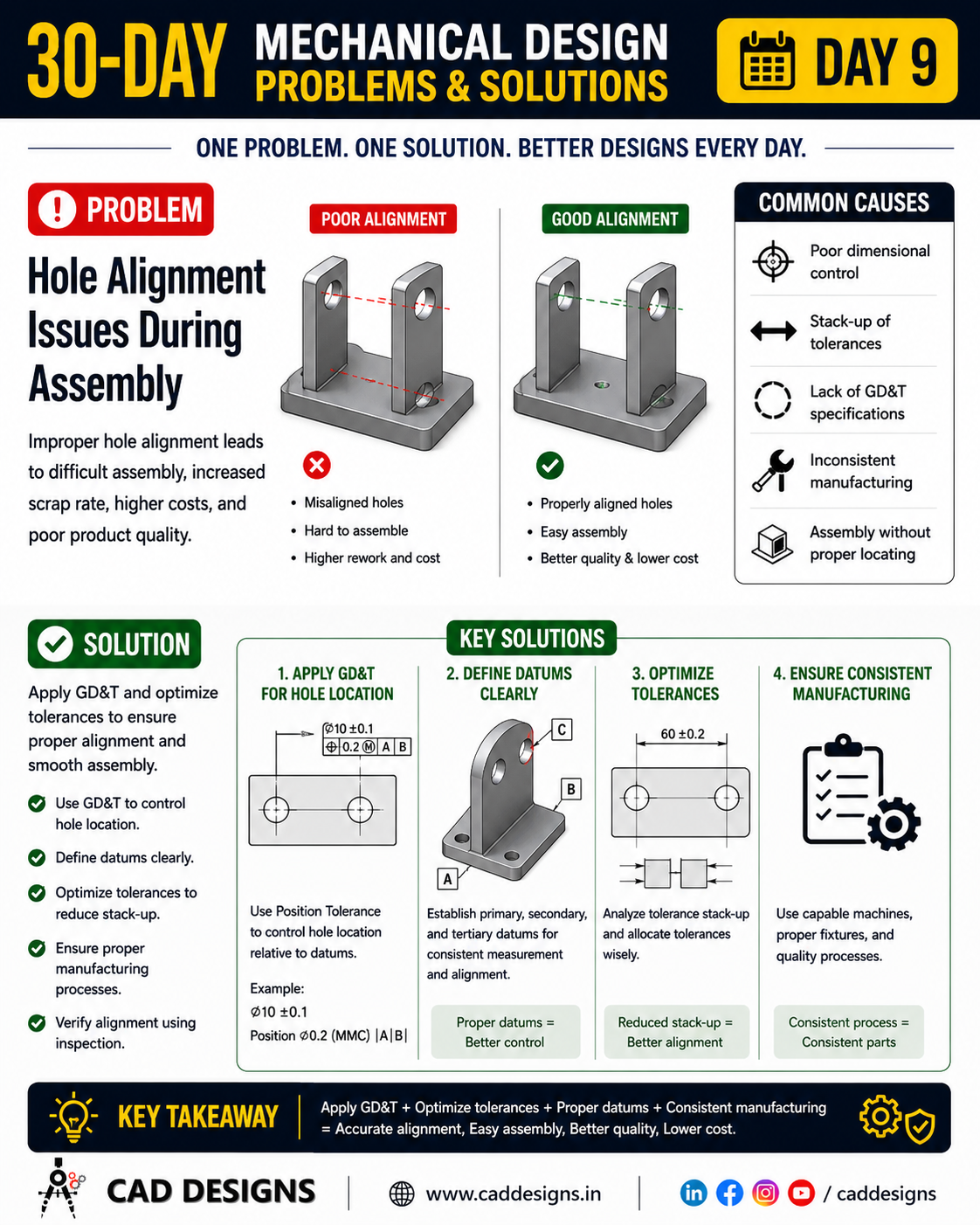

Problem: Hole Alignment Issues During Assembly
Solution: Apply GD&T and optimize manufacturing tolerances.
Day 10

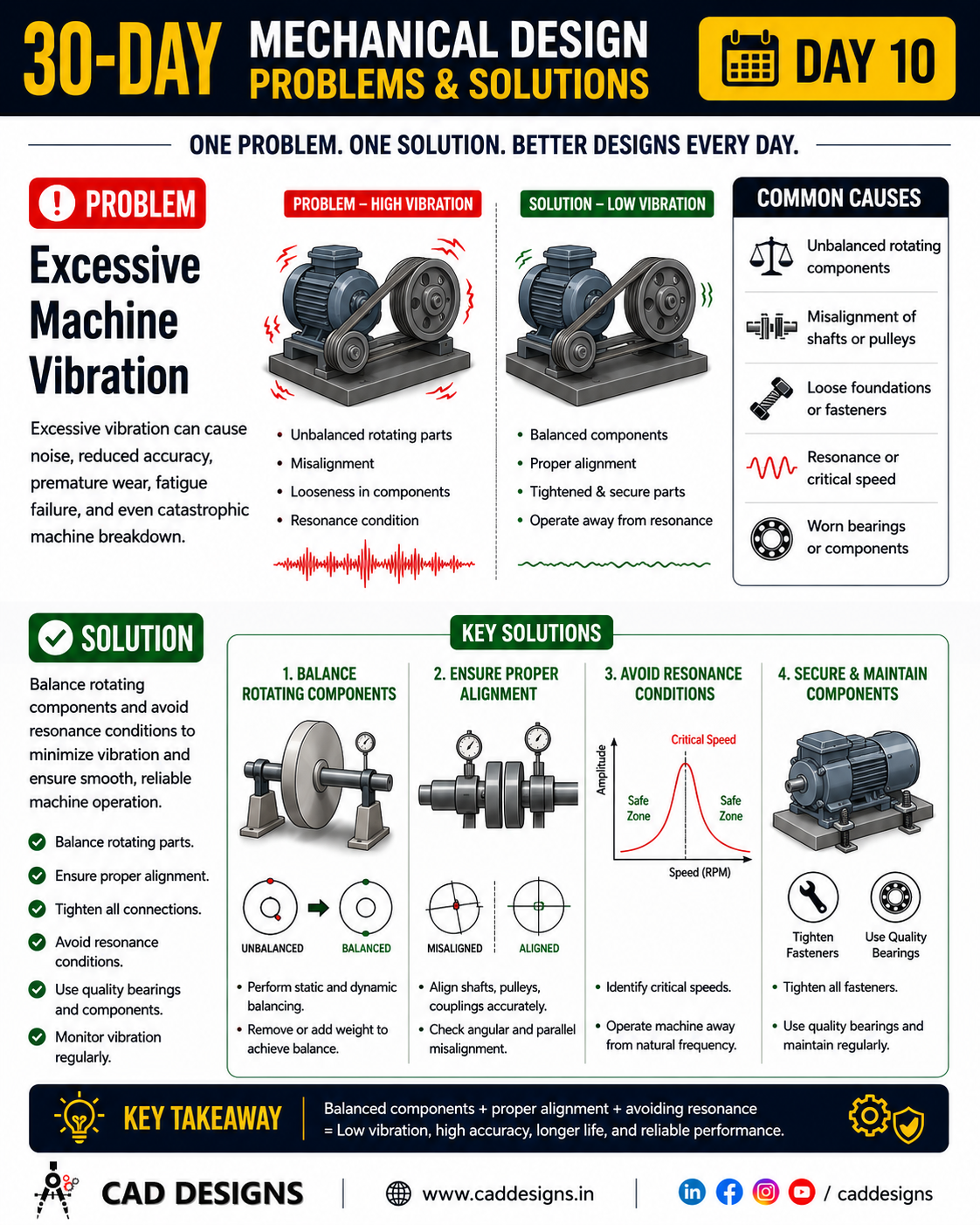

Problem: Excessive Machine Vibration
Solution: Balance rotating components and avoid resonance conditions.

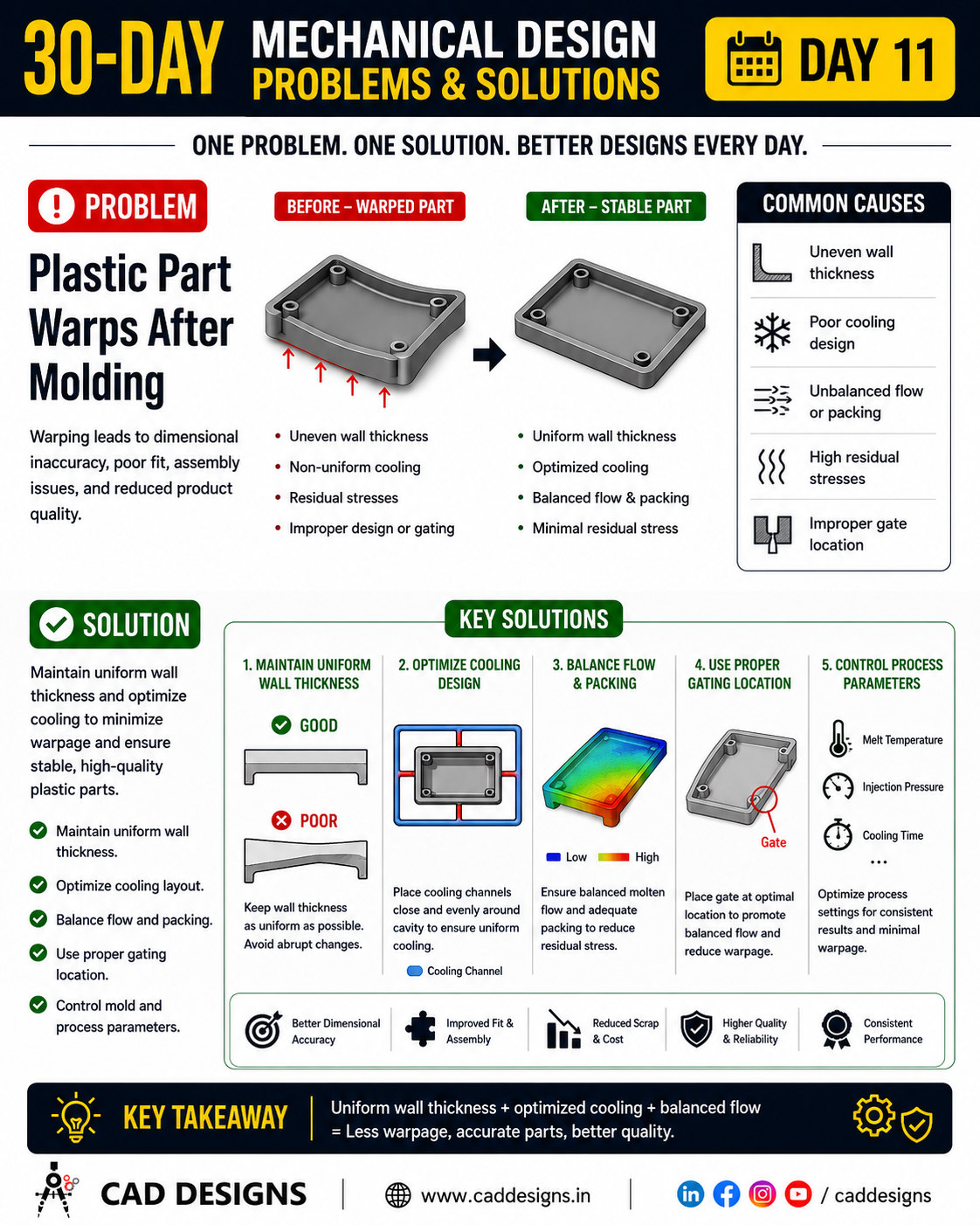

Day 11
Problem: Plastic Part Warps After Molding
Solution: Maintain uniform wall thickness and optimize cooling.

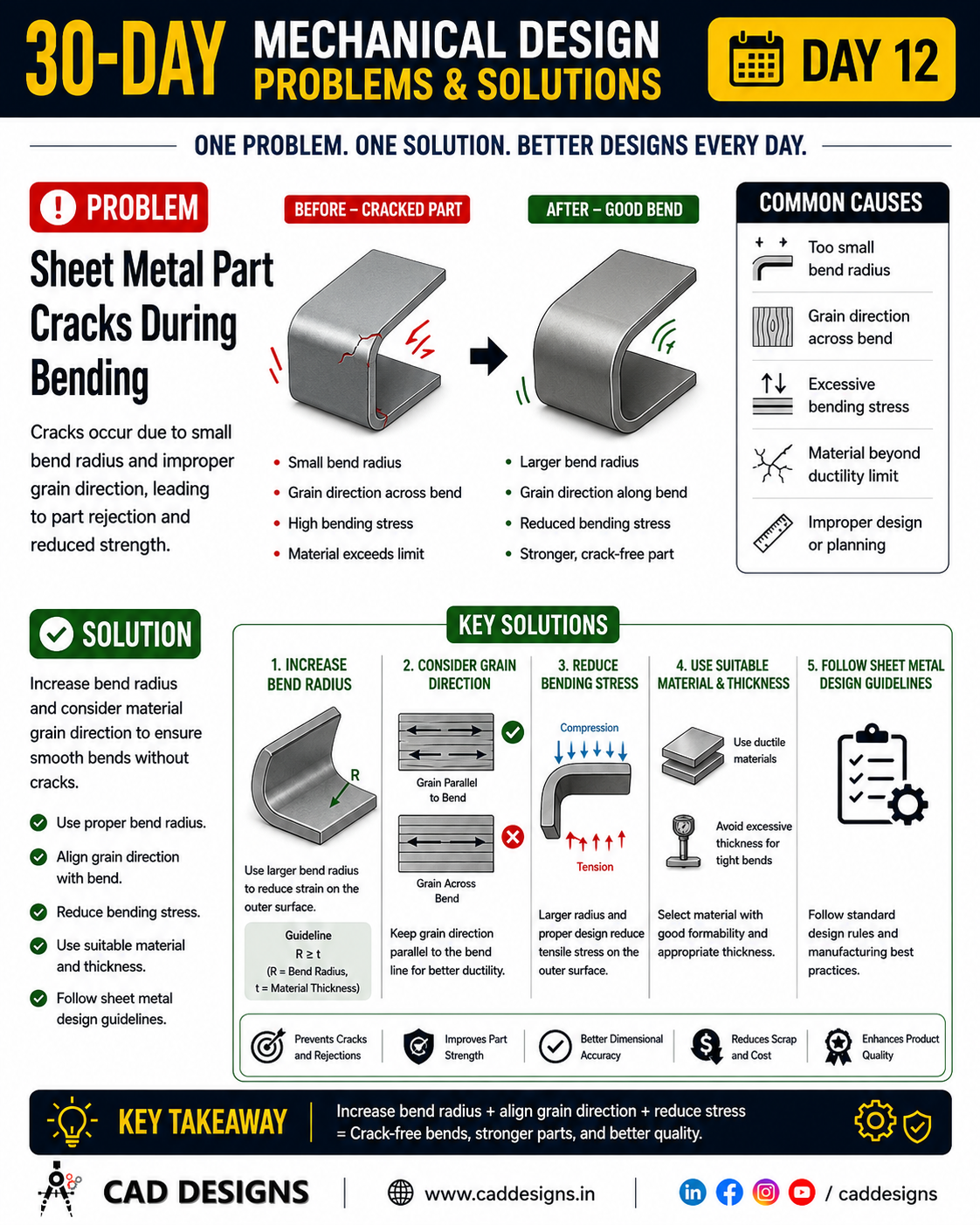

Day 12
Problem: Sheet Metal Part Cracks During Bending
Solution: Increase bend radius and consider material grain direction.

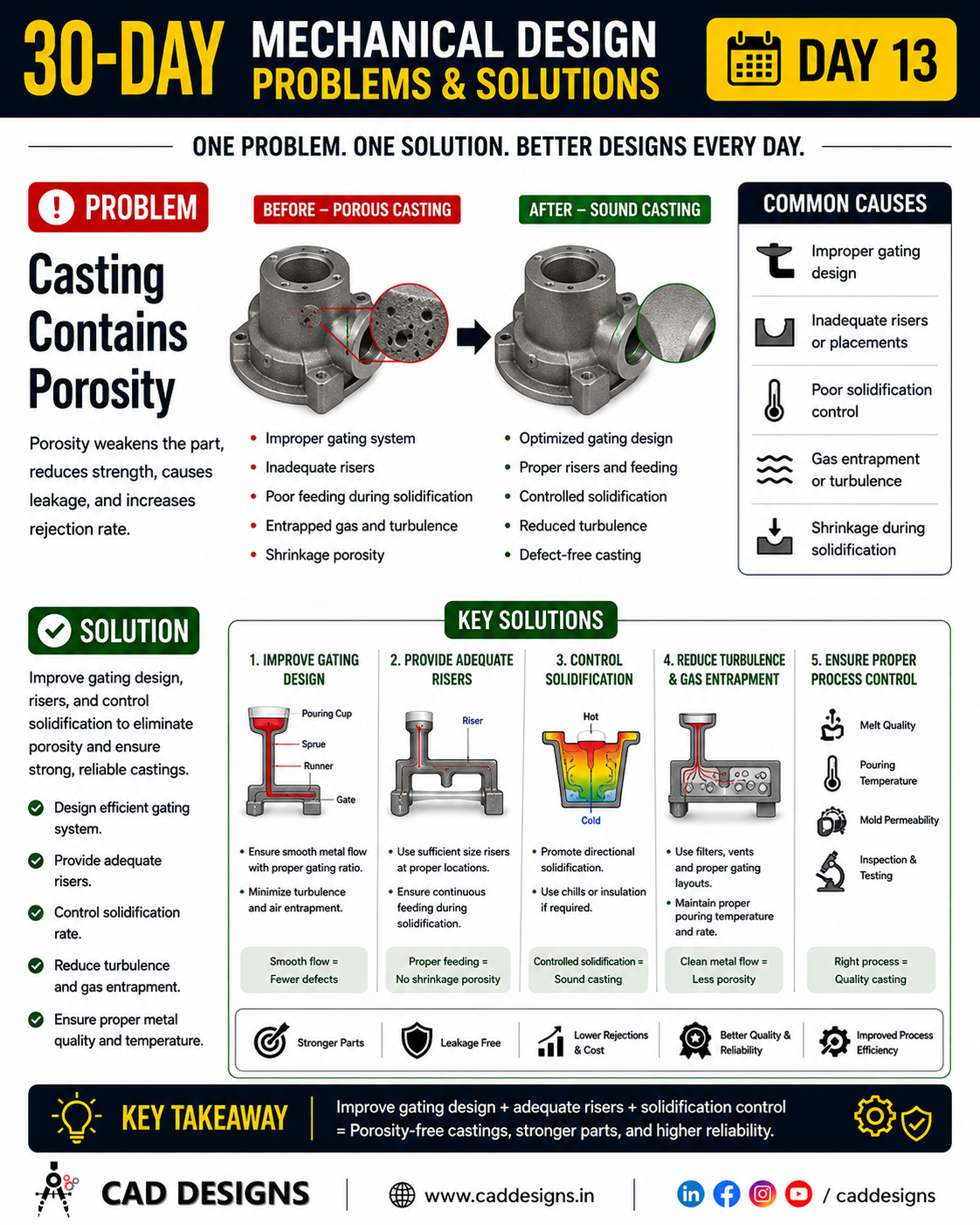

Day 13
Problem: Casting Contains Porosity
Solution: Improve gating design, risers, and solidification controlP.

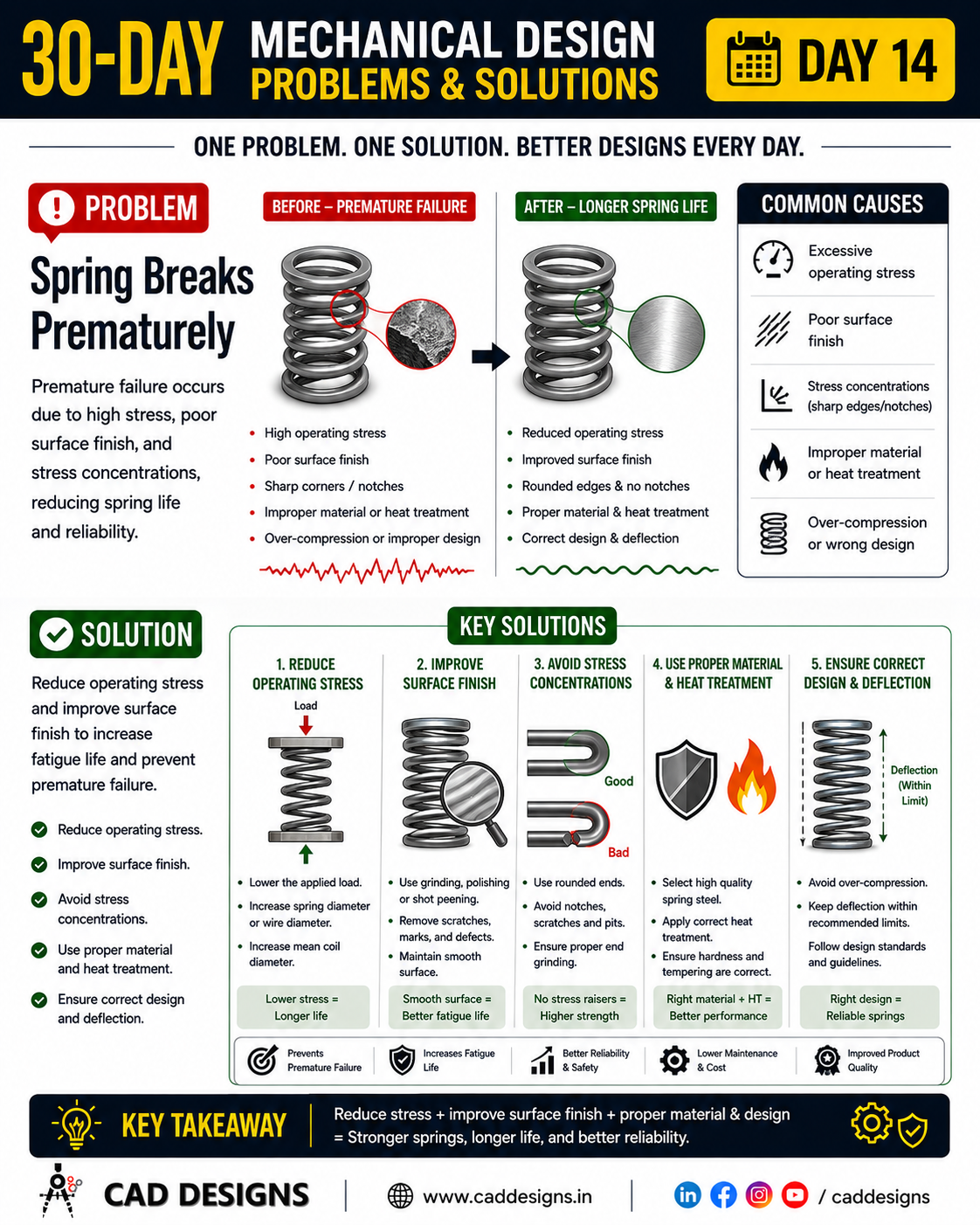

Day 14
Problem: Spring Breaks Prematurely
Solution: Reduce operating stress and improve surface finish.
Day 15

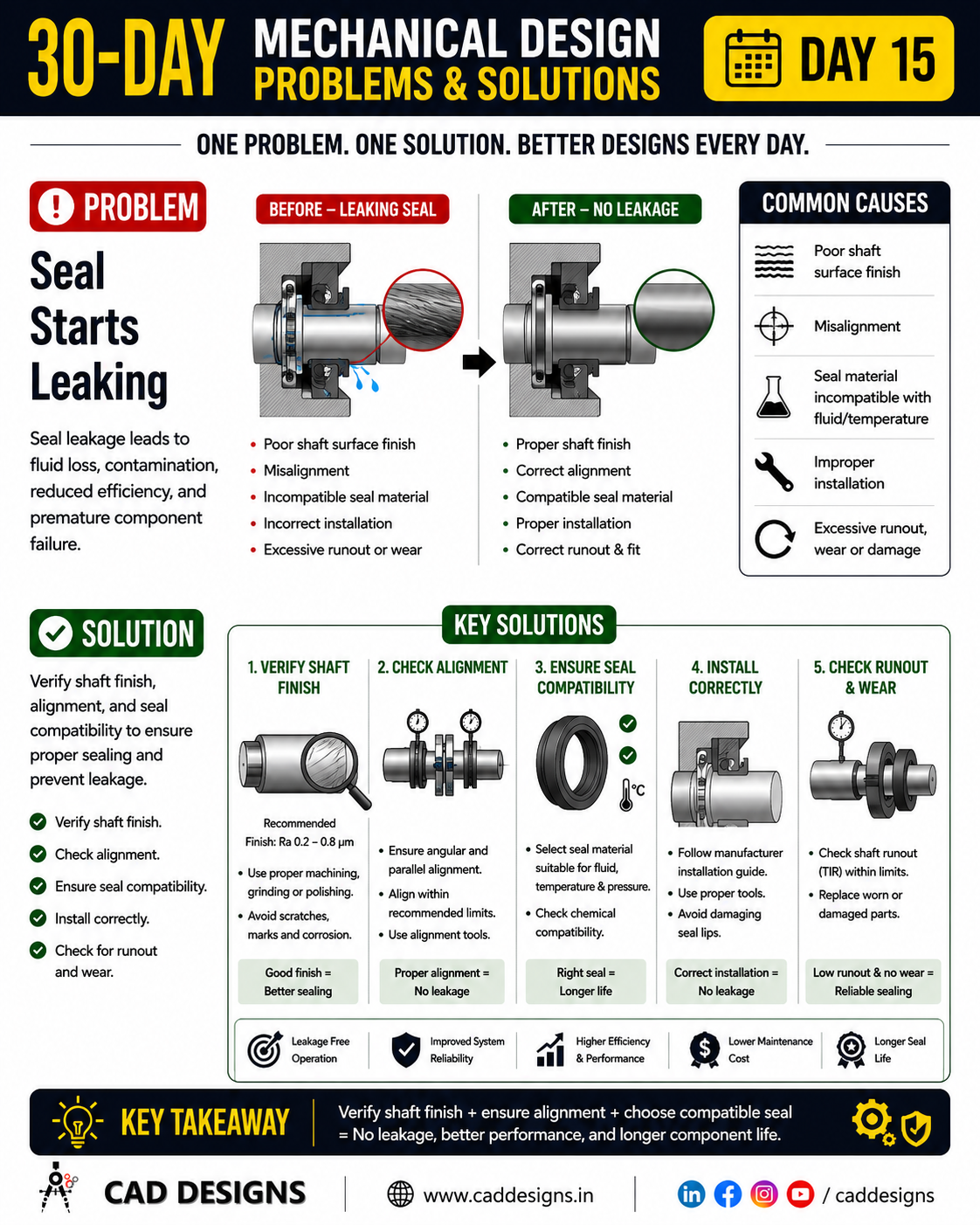

Problem: Seal Starts Leaking
Solution: Verify shaft finish, alignment, and seal compatibility.

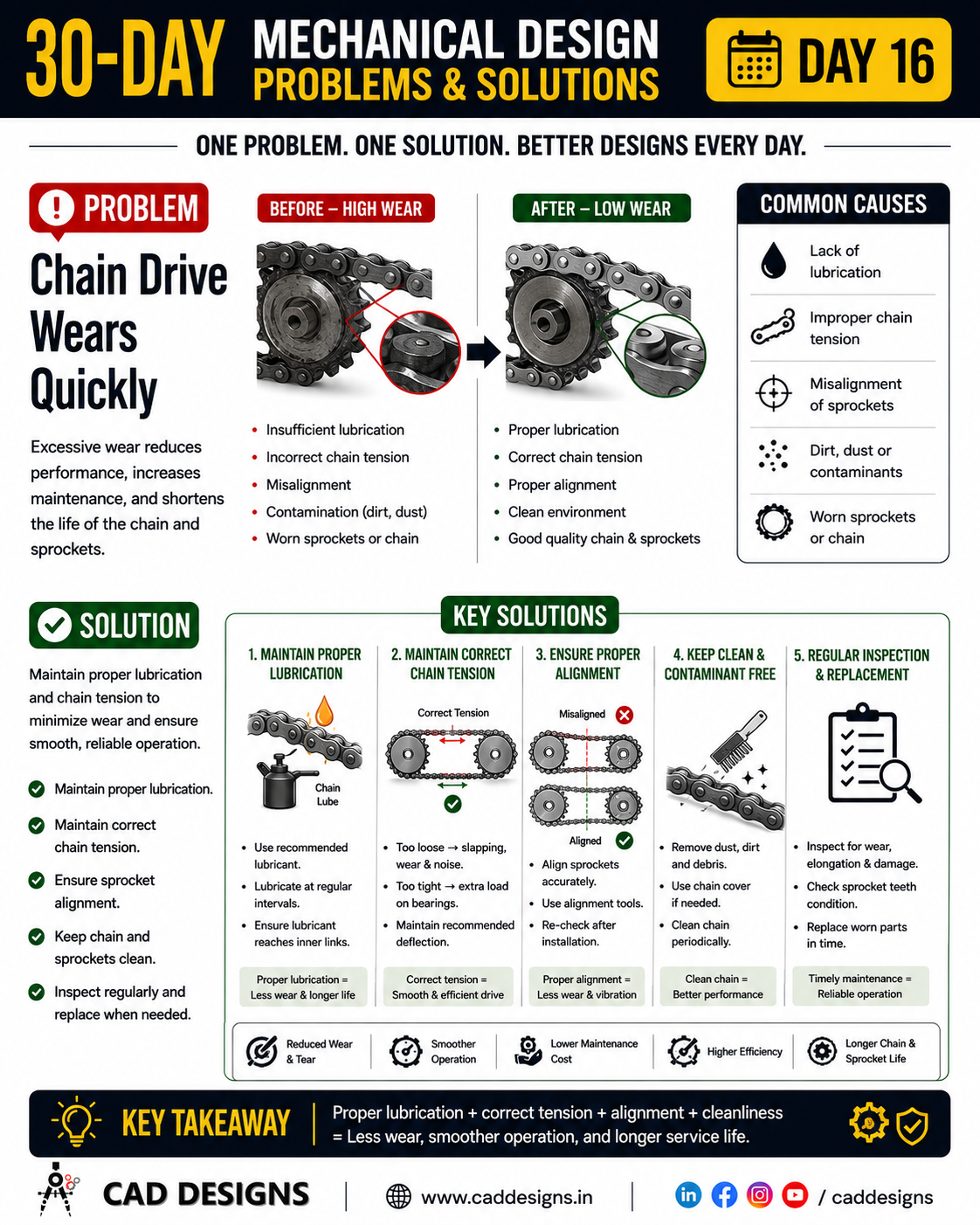

Day 16
Problem: Chain Drive Wears Quickly
Solution: Maintain proper lubrication and chain tension.
Day 17

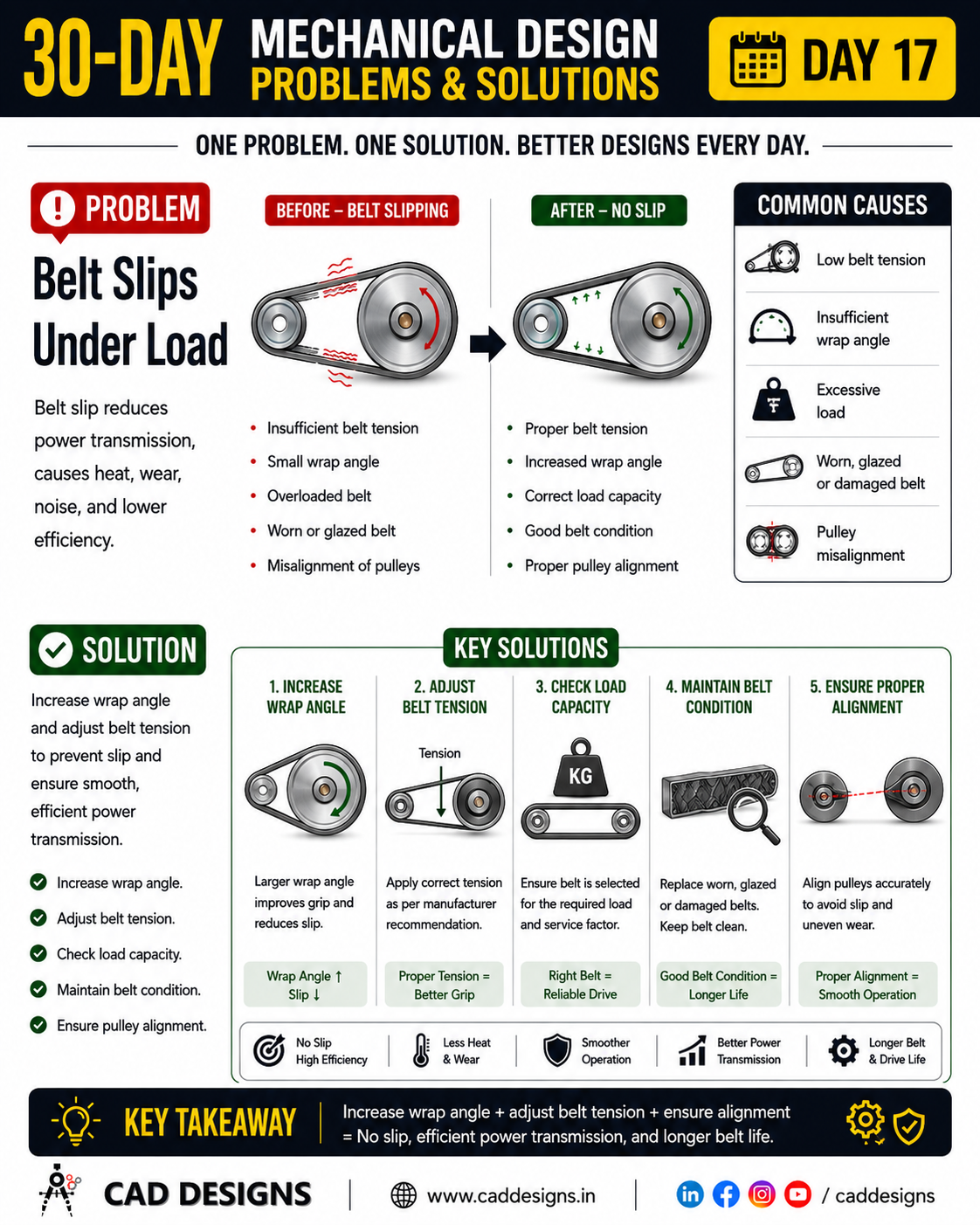

Problem: Belt Slips Under Load
Solution: Increase wrap angle and adjust belt tension.

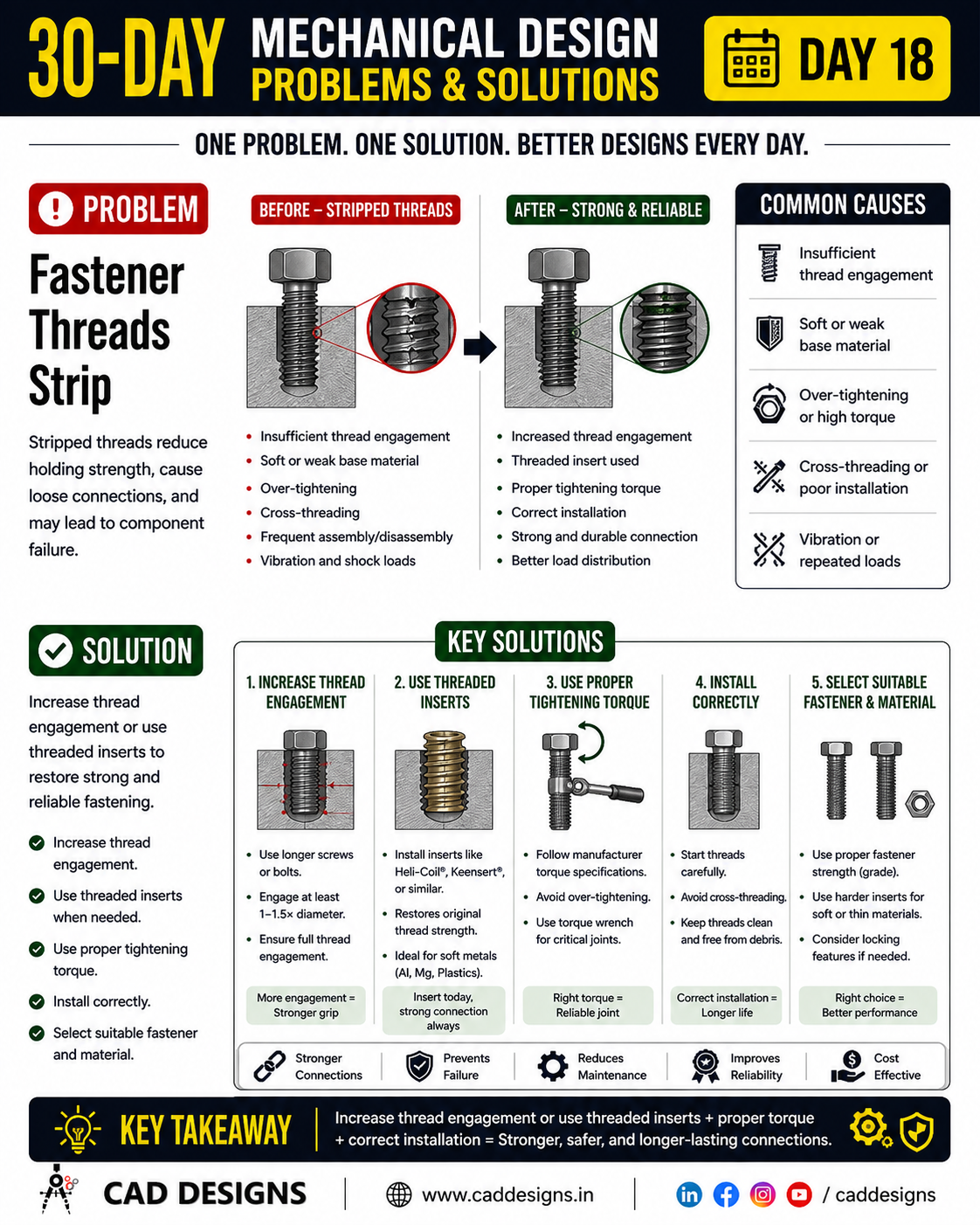

Day 18
Problem: Fastener Threads Strip
Solution: Increase thread engagement or use threaded inserts.
What You’ll Learn
By completing this 30-day series, you’ll gain a better understanding of:
- Mechanical Design Principles
- Machine Design
- Design for Manufacturing (DFM)
- Design for Assembly (DFA)
- GD&T
- Tolerance Analysis
- Failure Analysis
- Material Selection
- Manufacturing Processes
- CAD Best Practices
- FEA Fundamentals
- Product Development
Who Should Follow This Series?
- Mechanical Engineering Students
- Design Engineers
- CAD Engineers
- CAE Engineers
- Manufacturing Engineers
- Product Development Engineers
- Quality Engineers
- Engineering Professionals preparing for interviews
Follow CAD DESIGNS
This is just the beginning!
Every day, we’ll publish a detailed article explaining one real-world mechanical design problem with practical engineering solutions, illustrations, and industry best practices.
📌 Bookmark this page and follow the “30-Day Mechanical Design Problems & Solutions” series to strengthen your engineering knowledge one problem at a time.
